MULTI-POSITION TEST BOARD

WECO 8000

The WECO 8000 is a Multi-Position Test Board that combines meter qualification, meter demand, and meter accuracy testing in a single, modular rack-mount station.

Instead of keeping separate boards for functional testing and accuracy testing, the WECO 8000 brings them together, delivering versatility at the lowest cost of any WECO multi-position Test Board. Its RADIAN Direct Drive Current Source (DDCS) delivers accurate, stable loads, giving you the precision of an accuracy Test Board with the flexibility of a qualification board.

Request Price Quote Download Brochure

Product Highlights

What Is a Multi-Position Test Board?

A multi-position Test Board holds several meters at once, each in its own socket position, so a meter shop can test meters in volume: new shipments, returns, and meters for in-service programs. A single WECO 8000 rack holds 4 to 15 socket positions, and multiple cabinets can be daisy-chained for more. Each socket position is a modular 19-inch rack-mount unit that operates independently, so a single socket can be serviced without shutting down the rest of the station.

Accuracy Built In

With an embedded, NIST-traceable RADIAN reference standard, the WECO 8000 holds measurement accuracy and stability within ±0.05%. High-conductivity Smart Sockets™, with silver and gold contact surfaces and electronic socket control, give reliable low-insertion-force connections that extend hardware life across many meter forms.

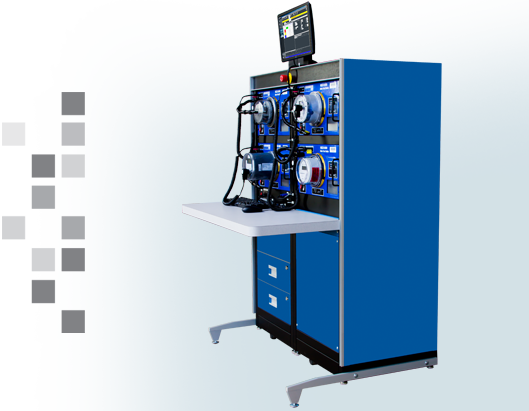

A side view of the WECO 8000 on a transparent background.

Features

Flexible. Safe. Accurate.

Multi-Position Rack-Mount Design: 4 to 15 socket positions, with cabinets that daisy-chain for more; each socket module is independent and can be serviced without affecting the others.
Direct Drive Current Source (DDCS): selectable full-load currents from 0.25 A to 50 A, for both meter qualification and full accuracy testing.
Selectable Test Voltages: 69 V, 120 V, 208 V, 240 V, 277 V, and 480 V.
Embedded Reference Standard: NIST-traceable watthour (Wh) accuracy and measurement stability within ±0.05%.
Laser-Based Optics: black-mark detection for mechanical disc meters and infrared pulse counting for electronic meters.
Smart Socket™ Technology: low-insertion-force sockets with high-conduction silver and gold contacts and electronic socket control.
WATT-Net Software included, for automated test sequencing, sampling, and result storage.
Meter Form Support: 1S, 2S, 3S, 4S, 5S, 6S, 8S, 9S, 10S, 12S, 13S, 14S, 15S, 16S, 19S, 20S, 21S, 25S, 26S, 29S, 32S, 35S, 36S, 45S, 46S, 56S, and 66S.
Safety and Protection: exposed sockets stay deactivated; each socket module has circuit breakers (no fuses to replace); a central emergency-off and individual socket power switches.
LED Indicators: show when voltage and current are active; line-side and load-side voltage LEDs help verify meter disconnect switch operation.

WECO 8000 Configurations

Build the WECO 8000 to fit your shop. Each rack holds 4 to 15 socket positions, in a layout two or three sockets high and two to five sockets wide. For more positions, multiple cabinets can be daisy-chained together.

Dimensions common to all configurations: tabletop height 34.5 in, tabletop depth 18.5 in, cabinet depth 22.5 in, and total depth 40.5 in. All units have casters and anti-tip legs. Options include storage drawers, a dedicated bay for an embedded LCD display with your PC, and a swing-arm monitor mount.

Part number	Layout	Positions	Height	Width
AU0006	2 high x 2 wide	4	64.5 in	45.5 in
AU0007	2 high x 3 wide	6	64.5 in	67.5 in
AU0008	2 high x 4 wide	8	64.5 in	89.5 in
AU0009	2 high x 5 wide	10	64.5 in	111.5 in
AU0010	3 high x 2 wide	6	76.5 in	45.5 in
AU0011	3 high x 3 wide	9	76.5 in	67.5 in
AU0012	3 high x 4 wide	12	76.5 in	89.5 in
AU0013	3 high x 5 wide	15	76.5 in	111.5 in

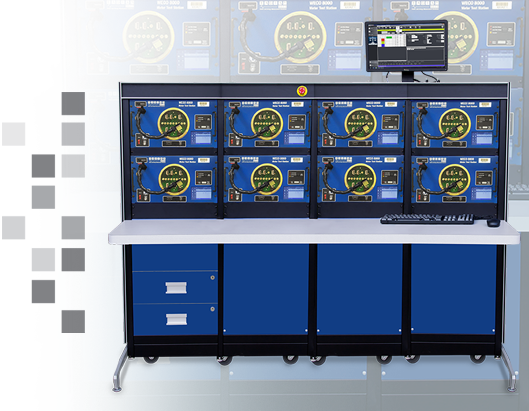

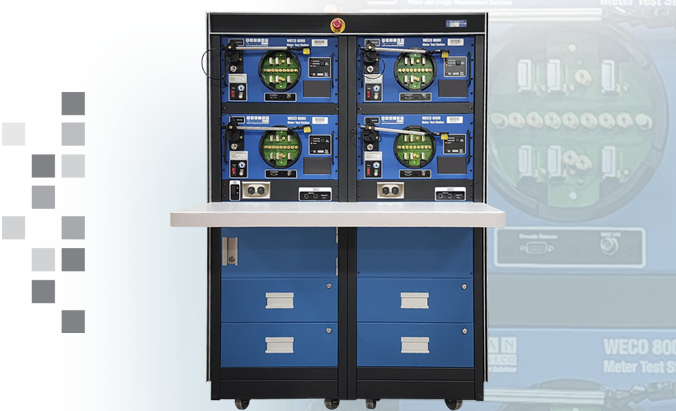

A 4-panel WECO 8000 on a semi-transparent background.

Combines Meter Qualification, Meter Demand, and Meter Accuracy Testing

One station for qualification, demand, and accuracy testing. Test meters for correct operation, check demand registers, and confirm accuracy against the embedded RADIAN reference standard, all without moving meters between boards. WATT-Net Software is included.

Request Price Quote

Which Multi-Position Test Board Is Right for You?

Choose the WECO 8000 for the most cost-effective multi-position watthour testing: qualification, demand, and accuracy on one station, with an embedded ±0.05% reference standard.

Choose the WECO 8050, 8100, or 8200 when you need VARhour, VAhour, and other measurement functions as well as watthours, or a synthesized source, with programmable test voltage from 30 V to 600 V, harmonics, sags, and swells, and a removable RADIAN RX-30 or RX-31 reference standard. For one meter at a time, see the WECO 4050X, 4150X, and 4330X single-position Test Boards.

Model	Positions	Source and reference	Best for
WECO 8000	4–15	DDCS, 0.25–50 A, selectable 69–480 V Embedded, ±0.05% Watthour (Wh)	The most cost-effective multi-position option
WECO 8050	4–24	Synthesized, 30–600 V, up to 50 A Removable RX, 0.02 or 0.04% Wh, VARh, VAh, and more	The most compact option, for meter shops with limited floor space
WECO 8100	4–24	Synthesized, 30–600 V, up to 100 A Removable RX, 0.02 or 0.04% Wh, VARh, VAh, and more	Higher test currents
WECO 8200	4–24	Synthesized, 30–600 V, up to 200 A Removable RX, 0.02 or 0.04% Wh, VARh, VAh, and more	The highest test currents

WECO 8000 FAQ

What is a multi-position Test Board?

A test station that holds several meters at once, each in its own socket position, so meter shops can test in volume instead of one meter at a time. A single WECO 8000 rack holds 4 to 15 positions, and cabinets can be daisy-chained for more.

What testing can the WECO 8000 do?

Watthour (Wh) meter qualification, demand, and accuracy testing on one station, across the meter forms listed above.

How accurate is the WECO 8000?

It uses an embedded, NIST-traceable RADIAN reference standard, with measurement accuracy and stability within ±0.05%.

Can it test mechanical disc meters as well as electronic meters?

Yes. Its laser-based optics read black marks on disc meters and infrared pulses from electronic meters.

How does the WECO 8000 compare with the WECO 8050, 8100, and 8200?

All four are multi-position Test Boards. The WECO 8000 offers selectable standard test voltages from 69 V to 480 V and generates current up to 50 A with the RADIAN Direct Drive Current Source, measures watthours (Wh), and is the most cost-effective choice for watthour qualification, demand, and accuracy testing. The WECO 8050, 8100, and 8200 synthesize both voltage and current, so test voltage and waveforms are fully programmable; they measure VARhours, VAhours, and other quantities as well as watthours; and they take a removable RADIAN RX-30 or RX-31 reference standard.
