Product Highlights

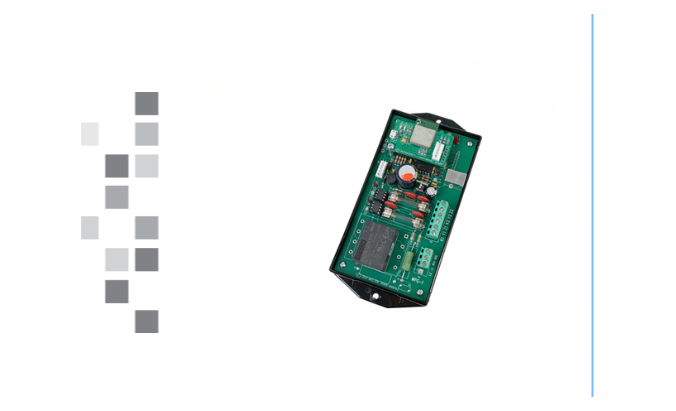

The WPG-1’s two independently configurable outputs offer flexibility for complex metering applications — one output can be set for delivered kWh while the other monitors kVARh received, for example — all from a single device. Output pulse values are selectable from 1 to 99,999 Wh, VAh, or VARh per pulse, with a meter multiplier of 1 to 99,999.
LED indicators provide immediate visual confirmation of both pulse output status and Wi-Fi communications health without the need for additional test equipment. A 30mS fixed minimum-off time delay ensures reliable, clean pulse output. For installations requiring weatherproof outdoor housing, the WPG-1E and WPG-1SC variants offer NEMA 4X enclosure options.
Features
- Wi-Fi interface receives usage data directly from the Itron Gen5 Riva meter, with no KYZ output needed at the meter.
- Two independent KYZ outputs, each set to kWh, kVAh, or kVARh, delivered or received.
- Form A (2-wire, momentary, six pulse widths from 25 to 1,000 ms) or Form C (3-wire, toggle) on each output.
- Pulse values from 1 to 99,999 Wh, VAh, or VARh per pulse, with a meter multiplier of 1 to 99,999.
- LEDs for each output and for Wi-Fi communications status, plus a fixed 30 ms minimum-off time for clean pulses.
- Compact (3.1 × 7.2 × 1.5 in, 1 lb), mounts in any position, operates from -38 °C to +70 °C, with NEMA 4X versions (WPG-1E and WPG-1SC).
Wi-Fi AMI-to-KYZ pulse link
- Mount and power the WPG-1 near the meter, in any position, from 120 or 208–277 VAC. Use the WPG-1E or WPG-1SC for outdoor installations.
- Program it over USB with the SSI Universal Programmer: pulse type, pulse value, meter multiplier, output mode, and pulse timing.
- Pair it with the meter. The utility pairs the WPG-1 with the meter’s Wi-Fi interface, and the WPG-1 begins receiving data.
- Confirm and connect. Check the communications and output LEDs, then connect the KYZ outputs to the customer’s equipment.
Which SSI Pulse Generator Fits Your Meter?
Both SSI wireless pulse generators let utilities install AMI meters and keep providing KYZ pulses to customers who rely on them. Choose by the meter’s radio: Wi-Fi for the Itron Gen5 Riva, or Zigbee for meters with a HAN radio.
Need to send pulses to a Modbus system? See the SSI PMC-1 Pulse-to-Modbus Converter. To isolate pulse outputs, see the SSI SPR-1 and SPR-24 Pulse Isolation Relays, or use the SSI Pulse Metering Product Selector.
| SSI WPG-1 | SSI MPG-3 | |
|---|---|---|
| Radio | Wi-Fi | Zigbee (meter HAN network) |
| Meters | Itron Gen5 Riva with Wi-Fi interface | AMI meters with a HAN radio |
| Pulse types | kWh, kVAh, or kVARh, delivered or received, set per output | kWh delivered, or delivered and received (signed mode) |
| Outputs | Two KYZ, Form A or Form C | Two KYZ, Form A or Form C |
| Pulse value | 1–99,999 per pulse | 1–99,999 Wh per pulse |
| Enclosure options | WPG-1E and WPG-1SC, NEMA 4X | Optional NEMA 4X; MPG-3EX external adapter for metal enclosures |
SSI WPG-1 FAQ
What does the WPG-1 do
The WPG-1 receives usage data from an Itron Gen5 Riva meter over Wi-Fi, calculates accumulated energy, and outputs KYZ pulses based on the pulse type and value you program. Customers who rely on pulses keep receiving them after the utility installs an AMI meter.
Which meters work with the WPG-1
The WPG-1 works with self-contained or instrument-rated Itron Gen5 Riva meters equipped with a Wi-Fi interface. For AMI meters with a Zigbee HAN radio, see the SSI MPG-3.
Can the two outputs report different quantities
Yes. Each output is set independently. For example, one output can report kWh delivered while the other reports kVARh received.
Who pairs the WPG-1 with the meter
The utility pairs the WPG-1 with the meter's Wi-Fi interface. Once paired, the WPG-1 begins receiving data and generating pulses.
Can the WPG-1 be installed outdoors
Yes. The WPG-1E and WPG-1SC versions come in a lockable NEMA 4X raintight, dustproof enclosure (10 × 8 × 4 in), and the WPG-1 operates from -38 °C to +70 °C.
