ACCESSORIES

Universal Standards Compare Adapter

The Radian Research Universal Standards Compare Adapter connects an external RADIAN reference standard to a test board through the meter socket, so you can run a standards compare without custom wiring. One socket-based base unit works with single-phase and poly-phase RADIAN standards, and a choice of current and voltage cables matches the terminals on your standard.

Request Price Quote Download Brochure

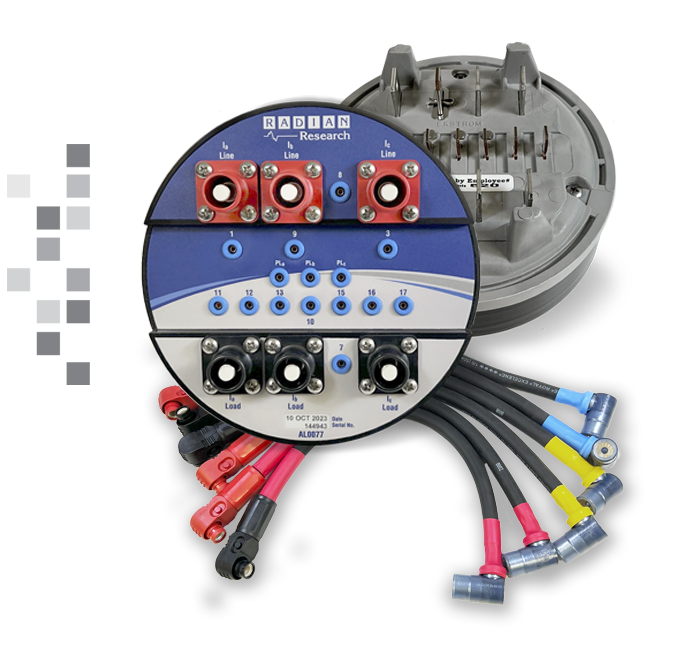

Universal Standards Compare Adapter front and back

Product Highlights

A standards compare checks the reference standard built into your test board against an external reference standard. Both standards measure the same voltage and current at the same time, and the test board software reports the difference. It is how a meter shop confirms the test board is still accurate between calibrations.

The Universal Standards Compare Adapter makes that connection simple. The AL0077 base plugs into the test board meter socket where a meter would go. Current and voltage cables run from the base to your external standard, so every compare uses the same connection point and the same wiring.

The system is modular. Start with the AL0077 base, then choose the current and voltage cables that match your standard’s terminals and the distance between the socket and the standard. Cables come in lengths from 9″ to 48″, with RX, SurLok, 6mm pin, 4mm stackable banana, 2mm, and unterminated ends.

For a ready-to-use setup, the AL0080, AL0083, and AL0097 kits include the base, matched current and voltage cables, and a RADIAN carrying bag. Individual cables are also sold separately to add a configuration or replace a worn cable.

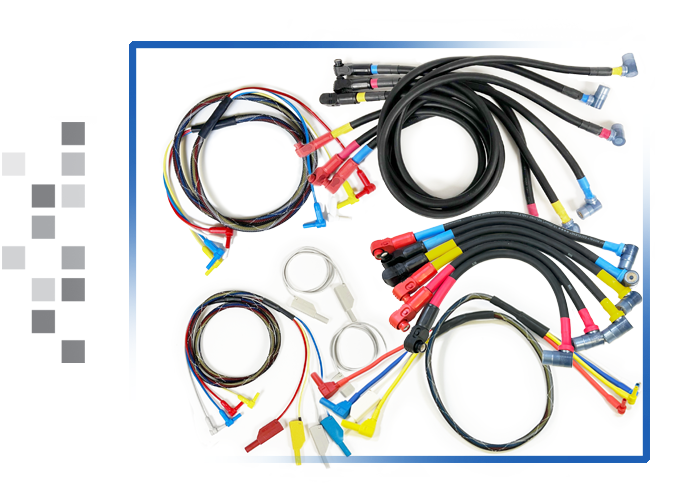

Universal Standards Compare Adapter Accessories

Features

One socket-based adapter for standards compare testing with single-phase and poly-phase RADIAN reference standards.
  • Socket-based base unit — the AL0077 base plugs into the test board meter socket, giving every standards compare the same connection point.
  • Single-phase and poly-phase — works with both single-phase and poly-phase RADIAN reference standards.
  • Line and load current jacks for each phase — SurLok current connections on the base, with 200 A RX and SurLok current cables available.
  • Matches your standard's terminals — current cables with RX, SurLok, 6mm pin, or unterminated ends; voltage cables with 2mm, 4mm stackable banana, or unterminated ends.
  • Lengths for bench and lab layouts — current and voltage cables from 9" to 48".
  • Special configurations — mirrored cables and a single-phase Y-cable (one SurLok to three 6mm pins) for specialized setups.

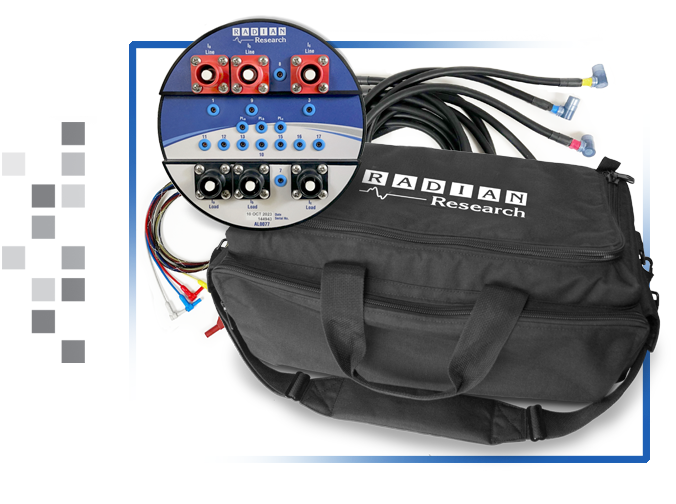

  • Complete kits or individual parts — AL0080, AL0083, and AL0097 kits include a RADIAN carrying bag (355057); every cable is also sold separately.
Universal Standards Compare Adapter front

Running a Standards Compare, Step by Step

  1. Choose the kit or cables that match the current and voltage terminals on your RADIAN reference standard.
  2. Plug the AL0077 base into the test board meter socket.
  3. Connect the current cables from the base’s line and load jacks to the standard’s current terminals, and the voltage cables to its voltage terminals.
  4. Connect the standard’s pulse output to the test board as described in the test board manual.
  5. In WATT-Net, set the nameplate information, jog to verify the connections, and start the standards compare test.
  6. Save the results to the database and build a Standards Compare Report for your records.
Request Price Quote

Which Kit Fits Your Standard?

Choose a kit by the current terminals on your reference standard and the cable length your bench needs. Every kit includes the AL0077 base and a RADIAN carrying bag (355057).

Not sure which kit fits your standard? Our team can match the cables to your standard and test board. Reference standards that work with this adapter include the RADIAN RX-30/31/33 and RADIAN RD-22.

Kit Current cables Voltage cables
AL0080 AL0078: 36″, 200 A,
SurLok to RX		 AL0079: 36″, 2mm to
4mm stacking, with
4mm neutral jumpers
AL0083 AL0081: 16″, 200 A RX AL0082: 16″, 2mm to
4mm stackable banana,
with 4mm neutral jumpers
AL0097 AL0089: 48″, 200 A Y-cable,
SurLok to three 6mm pins
AL0094: 9″ SurLok to SurLok
AL0095: 36″ 6mm pin to pin
AL0098: 48″ SurLok to 6mm pin		 AL0096: 44″, 2mm to
4mm stackable banana,
with 4mm neutral jumpers

Cables and Adapters Sold Separately

Add a configuration or replace a single cable without buying a new kit. Current cables connect the base’s line and load jacks to the standard’s current terminals. Voltage cables connect the base’s 2mm voltage jacks to the standard’s voltage terminals.

Part Description
Current cables
AL0094 9″ SurLok to SurLok, straight
AL0130 12″ SurLok to SurLok, straight
AL0081 16″ 200 A RX
AL00115 24″ 200 A SurLok to three 6mm pins
AL00122 24″ SurLok to 6mm pins
AL0078 36″ 200 A SurLok to RX
AL0095 36″ 6mm pin to 6mm pin
AL00104 48″ 200 A SurLok to RX
AL0087 48″ SurLok to SurLok, mirrored
AL0089 48″ 200 A Y-cable, SurLok to three 6mm pins, single-phase
AL0093 / AL0098 48″ SurLok to 6mm pin
AL00118 48″ SurLok to unterminated
Voltage cables
AL0082 16″ 2mm to 4mm stackable banana, with neutral jumpers
AL0079 36″ 2mm to 4mm stacking, with neutral jumpers
AL0096 44″ 2mm to 4mm stackable banana, with neutral jumpers
AL0088 48″ 2mm to 4mm stackable banana, with neutral jumpers
AL00112 48″ 2mm to 4mm stackable banana
AL0090 48″ 2mm to 2mm, mirrored
AL00117 48″ 2mm to unterminated
Adapters
AL00116 24″ 200 A SurLok to RX
AL00123 24″ 2mm to 4mm stacking

Universal Standards Compare Adapter FAQ

What is a standards compare test

A standards compare runs the same voltage and current through the reference standard built into your test board and an external reference standard at the same time. The test board software compares the two readings and reports the difference. It confirms the test board standard is still within its accuracy between calibrations, and the saved results give you a record for audits.
The adapter works with single-phase and poly-phase RADIAN reference standards. Choose the kit by the current terminals on your standard: the AL0080 and AL0083 kits use RX current cables, and the AL0097 kit uses 6mm pin current cables. Our team can confirm the right cables for your standard.
The AL0077 base plugs into the test board meter socket, the same way a meter does. The test board sources voltage and current into the base, and the current and voltage cables carry them to the external standard. Because the connection point never changes, every compare is wired the same way.
A kit is the simplest way to start. It includes the base, matched current and voltage cables, and a carrying bag. Individual cables make sense when you already own a base and need a different length or termination, a mirrored or Y-cable configuration, or a replacement cable.
WATT-Net includes a standards compare test. After the test runs, save the results to the database, then build a Standards Compare Report to review or print the history for each test board.
