Product Highlights
The addition of a second fixed Form C output in the utility compartment makes the CIR-2PS+ a practical solution for installations where both a customer energy management system and a utility pulse recorder must be served simultaneously from a single meter connection. Both outputs share the same solid-state switching devices, rated at 800V and 750mA for robust protection against transient voltage events.
The customer-accessible output mode switch allows the customer-side output to be changed between 2-wire and 3-wire without utility access. In 2-wire mode, each contact closure is approximately 100mS, occurring on every state change of the 3-wire input. Red and green LEDs in the customer compartment provide immediate visual status indication.
Features

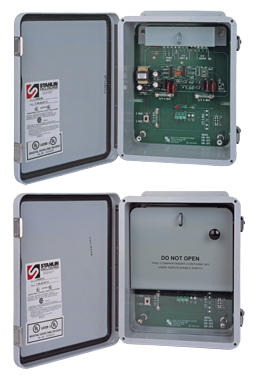

The SSI CIR-2PS+ provides two isolated KYZ outputs from a single meter input — one field-selectable, one fixed utility output — in a compact NEMA 4X enclosure.
- Two isolated KYZ outputs — one field-selectable Form A or Form C customer output; one fixed Form C utility output.
- Dual-compartment NEMA 4X enclosure — locked utility section and accessible customer section in a single weatherproof package.
- Field-selectable customer output — customer compartment switch selects 2-wire or 3-wire output mode without utility access.
- Coordinated dual-compartment fusing — double "K" lead fusing across both compartments simplifies fault localization.
- 800V/750mA solid-state switching — provides maximum protection from lightning and transient voltage events.
- LED status indicators — red and green LEDs in the customer compartment allow rapid visual system verification.
Dual-output meter interface relay
