Product Highlights

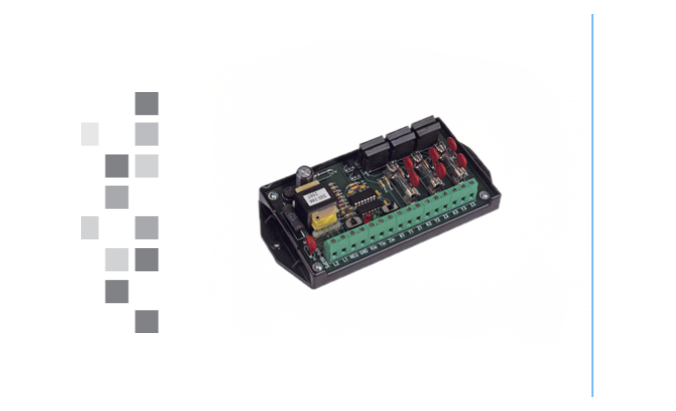

The RPR-903PS sets itself apart with its field-selectable third output, which can be configured for Normal mode — mirroring the input pulse directly — or Pulse Doubling mode, which converts a Form C input into a true Form A pulse value output. This built-in conversion capability eliminates the need for additional signal conditioning equipment and gives installers greater flexibility when interfacing with equipment that requires different pulse formats.
Reliability and protection are standard throughout. Solid state switches rated at 800V and 750mA, combined with built-in transient suppression, safeguard all three output channels from lightning and voltage spikes without requiring external protection devices. Fused “K” output leads, red and green LED status indicators, and a “Euro” type terminal strip make the RPR-903PS easy to install and maintain across metering, SCADA, and demand recording installations.
Features
- Three isolated solid state Form C (KYZ) outputs from a single Form A or C input
- Two fixed Form C outputs plus one field-selectable Form A or C output
- Pulse Doubling mode for true Form C to Form A pulse value conversion
- Input noise and transient filtering on each channel to eliminate false pulses
- Solid state switch rated at 800V / 750mA with built-in transient protection
- Fused "K" output leads (½ amp, 3AG) on each channel
- 2,500Vrms input/output isolation voltage
- Red and green LED status indicators
- Available in 24 VAC/VDC and 125 VDC input voltage options
Single-Input Triple-Output Pulse Relay
