Product Highlights
The P-1’s three selectable pulse sources make it adaptable to a wide range of testing scenarios. The 1Hz precision mode delivers a stable, known pulse rate for verifying counting accuracy at downstream devices. The variable mode allows the tester to sweep across the 1–10Hz range to check device response across different demand levels.
The external input mode enables integration with a lab signal generator for custom pulse patterns not achievable with the built-in sources.
Bright red and green LED indicators display K-Y and K-Z continuity status at all times, confirming pulser operation at a glance without additional test equipment.
Features

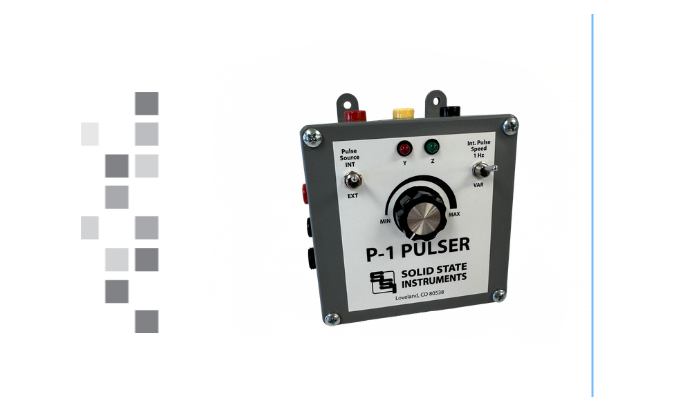

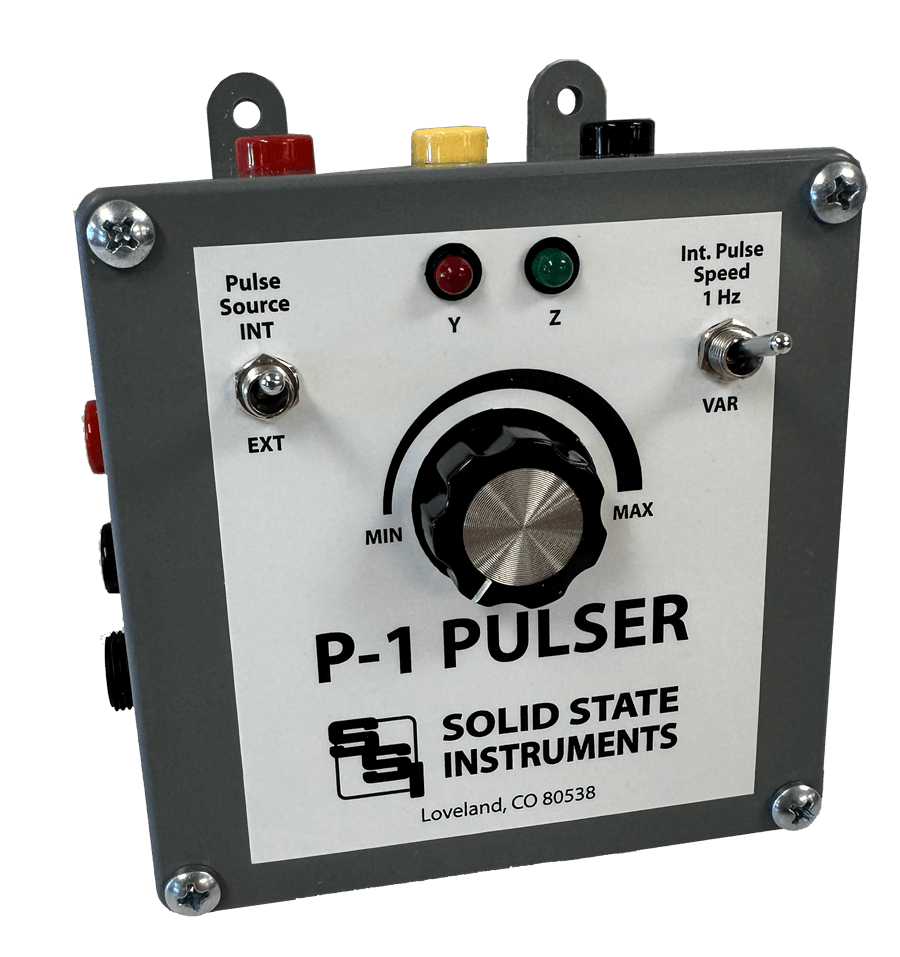

The SSI P-1 Pulser simulates Form A or Form C meter KYZ pulse outputs at selectable rates for testing telemetry, recorders, and energy management systems.
- Three selectable pulse sources — 1Hz precision pulse, variable 1–10Hz (potentiometer-controlled), or external pulse input for function generator use.
- Form A and Form C output — configurable for either 2-wire (KY) or 3-wire (KYZ) simulated meter pulse output.
- Optically isolated solid-state output — dry-contact output rated at 100mA maximum; matches standard electric meter contact ratings.
- 12VDC plug-in wall transformer included — powers the unit from any 120VAC outlet; no batteries required.
- Red and green LED indicators — display K-Y and K-Z continuity status at all times for rapid visual confirmation.
- Polycarbonate enclosure — all powered components enclosed; polycarbonate base provides electrical insulation from mounting surface.
- Portable handheld form factor — designed for bench test, field commissioning, and lab use.
Handheld KYZ Meter Output Simulator
