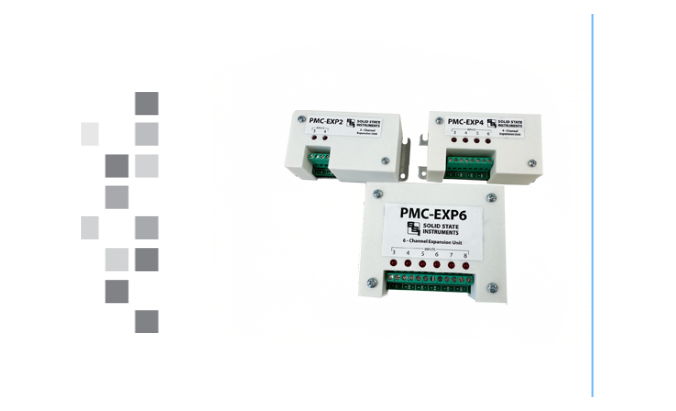

PMC-1 Expansion Boards

EXP2
EXP4
EXP6

The EXP Expansion Boards are add-on input boards designed exclusively for use with our PMC-1 V5 Pulse-to-Modbus Converter, extending its base 2-channel capacity by 2, 4, or 6 additional 2-wire KY pulse input channels. Each board connects directly to the PMC-1’s main board via a ribbon cable and draws power entirely from the PMC-1 host — no additional power supply, external wiring, or network configuration is required.

The PMC-1 automatically detects which EXP board is installed on power-up and immediately makes all new channels available in its Modbus register map. Each additional input provides +12VDC wetting voltage, supports the full PMC-1 pulse value range (.001 to 655.35 kWh/pulse), and stores cumulative energy, raw pulse count, and demand data in non-volatile memory — all accessible via the existing PMC-1 Ethernet connection and IP address. Only one EXP board can be installed per PMC-1 unit.

Request Price Quote Download Data Sheet

Product Highlights

EXP boards maintain the same functionality and data accessibility as the PMC-1’s built-in channels, with no difference in the Modbus register structure or energy data capabilities between base and expanded channels. Red LED indicators on each board display individual pulse input status at all times, providing the same visual feedback as the PMC-1’s built-in channel LEDs for straightforward field verification.

Because all expanded channels share the PMC-1’s existing Ethernet connection and IP address, adding an EXP board requires no changes to the network infrastructure, Modbus client configuration, or IP addressing scheme — making channel expansion as simple as plugging in the board and powering the unit back on.

Product Variants — Choosing the Right EXP Board

EXP2

Adds 2 input channels; expands the PMC-1 from 2 to 4 total channels.

Best for installations requiring a modest expansion where only a few additional meters need to be connected.

EXP4

Adds 4 input channels; expands the PMC-1 from 2 to 6 total channels.

The most common choice for mid-scale submetering deployments requiring several additional meter connections from a single Modbus device.

EXP6

Adds 6 input channels; expands the PMC-1 from 2 to the maximum 8 total channels.

The right choice when full capacity is needed from the outset — such as building-wide submetering or campus energy monitoring installations.

Features

The SSI EXP2, EXP4, and EXP6 expansion boards add 2, 4, or 6 additional KY pulse channels to the PMC-1 V5 Converter via ribbon cable with no additional power or configuration needed.

Plug-in ribbon cable connection — connects directly to PMC-1 V5 main board; no additional enclosures, wiring, or hardware needed.
No additional power supply required — all EXP boards draw power directly from the PMC-1 host.
Auto-detection on power-up — PMC-1 automatically identifies the installed board and activates all new channels; no configuration required.
+12VDC wetting voltage per input — compatible with dry contact and open-collector transistor pulse outputs on all added channels.
Full register set per channel — cumulative energy, raw pulse count, instantaneous demand, average demand, and peak demand; stored in non-volatile memory.
Shared Modbus TCP access — all additional channels accessible through the existing PMC-1 IP address and connection; no network changes needed.
Red LED pulse indicators — individual red LEDs per input display pulse status at all times for rapid field verification.
