Product Highlights
The customer compartment’s field-selectable switch allows the output to be configured as either 2-wire (Form A) or 3-wire (Form C) without accessing the utility compartment. In 2-wire mode, each relay contact closure is approximately 100mS and occurs on every 3-wire input state change, automatically doubling the pulse value for Form A applications. In 3-wire mode, the KY and KZ contacts directly follow the input’s state.
The CIR-1PS+ is built for durability and safety — the solid-state switching device is rated at 800V and 750mA for maximum protection against lightning and transients, and built-in transient suppression eliminates the need for external suppressors. Coordinated double “K” lead fusing protects against overcurrent and incorrect wiring in both compartments.
Features
- Single isolated KYZ output — one field-selectable Form A (KY) or Form C (KYZ) solid-state dry contact output rated at 250VAC/VDC at 1/2A.
- Dual-compartment NEMA 4X enclosure — locked utility compartment and separate customer compartment in one weatherproof ready-to-use package.
- Field-selectable 2-wire or 3-wire output — customer-accessible switch in lower compartment; no utility access required for reconfiguration.
- Coordinated dual-compartment fusing — double "K" lead fusing in both utility and customer compartments enables fast fault localization.
- 800V/750mA solid-state switching device — provides maximum protection from lightning and transient voltage damage.
- Built-in transient suppression — eliminates the need for external or off-board transient suppressors.
- LED status indicators — red and green LEDs in the customer compartment provide rapid visual system status without test equipment.

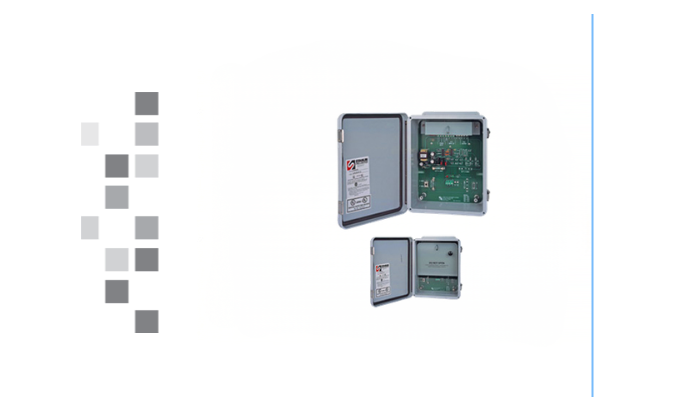

Single-output utility-to-customer interface
